Product Description

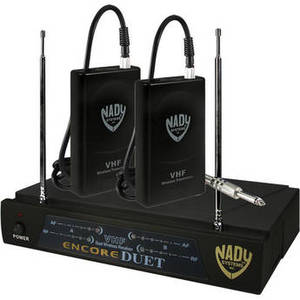

The Encore Duet Dual Receiver VHF Wireless Guitar System by Nady brings you a complete wireless solution for up to two guitars or other instruments and is a cost-effective, cable-free system for houses-of-worship, auditoriums, presentations, small performances and more.The Encore Duet allows for individual or simultaneous wireless operation over two VHF frequencies. The system includes a rugged receiver with dual antennas, two WGT Instrument Bodypack transmitters and 1/4" phone and XLR outputs for connection to PA systems. Each transmitter operates up to 15 hours on a single 9V battery.
| System | |
| Type of System | Dual Channel VHF |
| RF Carrier Frequency Range | 2 channels between 169-216MHz |
| Approx. Working Range | Up to 250 ft. typical (depending on site conditions) Up to 500+ feet optimum line-of-sight |
| Overall Frequency Response | 25Hz - 20kHz, +/-3dB |
| Total Harmonic Distortion (THD) | < 0.3 % |
| Frequency Stability | +/- 0.005% crystal controlled |
| Modulation | FM (F3E) +/-20kHz max |
| Receiver | |
| Type of Outputs | Dual balanced XLR and unbalanced adjustable 1/4" audio out jacks (Ch A & B mixed) 2.1 mm barrel-type DC input jack |
| Power Requirements | 12V @ 400mA, nominal AC/DC adapter supplied |
| LED Indicators | Power ON, Dual 5-LED RF and AF level displays(Ch A/B) |
| Antenna Type | 11.2" (28.5 cm), dual telescopic |
| Dimensions | 1.75 x 7.5 x 8.1" (4.4 x 19 x 20.7 cm) |
| Weight | 1.6 lb (0.73 kg) |
| Transmitter | |
| Type of Transmitter | WGT instrument bodypack |
| Polar Pattern | Omnidirectional |
| Battery Type/Approx. Life | Battery: 9V Alkaline Battery Life: Up to 15 hours |
| Mute Switch | Off/On Switch |
| Display | Low-battery LED |
| Dimensions | 4.1 x 2.4 x 0.8" (10.4 x 6.1 x 2.0 cm) |
| Weight | 3.6 oz (101 g) |
