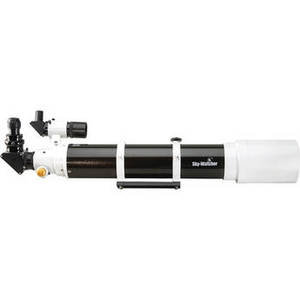

ProED 120mm f/7.5 Doublet APO Refractor (OTA only)


From Sky-Watcher | Model #: SKPRO120EDAP



See more in


ProED 120mm f/7.5 Doublet APO Refractor (OTA only)

Product Description

The ProED 120mm f/7.5 Doublet APO Refractor from Sky-Watcher features a doublet apochromatic lens system with Extra-low Dispersion (ED) glass and Sky-Watcher's proprietary photon anti-rejection Metallic High-Transmission Coatings (MHC) on all air-to-glass optical surfaces. This combination of glass, lenses, and coatings virtually eliminates chromatic aberrations for clear and bright high-contrast images with true color rendition. This is a versatile optical tube assembly (OTA) that is well suited for wide-field astronomical observation of prominent nebulae, star clusters and galaxies, or can be used as an astrograph for sky photography, a terrestrial spotting scope or telephoto lens. The larger 120mm aperture of this ProED model not only increases image brightness over the smaller 80mm and 100mm versions, it improves resolution and contrast.

A mounting cradle-ring clamps over OTA and allows the user to adjust the orientation and position of the scope relative to the mount to optimize viewing comfort and balance, while avoiding interference with other equipment. The scope is offered without a mount or tripod, but a Vixen-style dovetail plate makes it compatible with any alt-az or equatorial mount with a Vixen-style saddle.

Its two-speed Crayford-style focuser helps make fine-focusing fast and precise without backlash. The ProED comes with several accessories to help you get observing faster and easier. First, are two long eye relief eyepieces that produce 30 and 120x magnification, a 90° star diagonal for more comfortable viewing, and a large 8x50 erect-image finderscope to make finding your celestial objects faster and easier. Finally, Sky-Watcher provides a foam-lined aluminum carrying case to safely store and transport the OTA.

Optical Design Apochromatic Refractor
Aperture 4.7" / 120 mm
Focal Length 900 mm
Focal Ratio f/7.5
Eyepiece Barrel Diameter 2"
1.25" with included adapter
Diagonal 90° Star
Finderscope 8x50 erect-image
Tripod None
Mount Type Vixen-style dovetail
Length 37.8" / 96.0 cm
Weight 11.3 lb / 5.1 kg
