Product Description

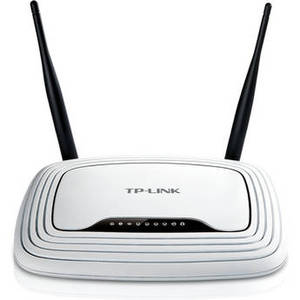

The TL-WR841N is backward compatible with 802.11b and g and thanks to Align technology from Atheros Communications Inc., is forward compatible with higher-performance, multi-stream, MIMO-based 802.11n which offers an impressive 300Mbps at a very reasonable price. Besides high speed, 802.11n gives you great performance even at long distances, as well as an SPI firewall to prevent your network from being compromised. Other security features include SSID broadcast control, MAC address access control, WEP encryption, WPA/WPA2, and WPA-PSK/WPA2-PSK authentication. It has dual external antennas to enhance transmission rates and coverage while CAA technology prevents channel conflicts.
Besides home use, the TL-WR841N is a great choice for businesses since it offers priority, support and stability to large bandwidth-consuming applications which are subject to interruptions, like voice and video.
| Standards | IEEE 802.11g IEEE 802.11b IEEE 802.11n |
| Interface | 4x 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX) 1x 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX) |
| Data Rate | Up to 300Mbps |
| Frequency Range | 2.4-2.4835GHz |
| Transmitted Power | 20dBm Max EIRP |
| Modulation System | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Receiver Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Antenna | Dual 5dBi fixed external omni-directional antennas |
| Software | NAT, Dos Firewall, DHCP |
| Security | WEP/WPA/WPA2/WPA2-PSK/WPA-PSK |
| Power Supply | 120V Output: 9V DC / 0.6 A switching PSU |
| Operating Conditions | Operating temperature: 0 - 40°C (32 - 104°F) Storage temperature: -40 - 70°C (-40 - 158°F) Relative humidity: 10 - 90%, non-condensing Storage humidity: 5 - 95%, non-condensing |
| Dimensions | 7.6 x 5.1 x 1.3 in.(192 x 130 x 33 mm) |
