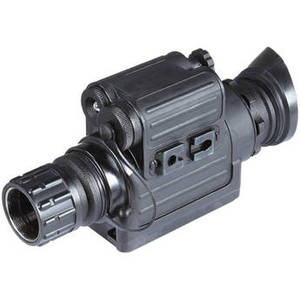

Spark CORE Multi-Purpose Night Vision Monocular
Product Description
Empowered by the Ceramic Optical Ruggedized Engine Technology (CORE), the Spark CORE Multi-Purpose Night Vision Monocular from Armasight is one of a few 1st generation night vision monoculars to boast 60-70 lp/mm resolution with minimal edge-to-edge image distortion. This device combines optimal performance characteristics with versatility: 1x magnification, 30° angular field of view, 0.82' minimum focus distance, and an 8 mm exit pupil. If you need to see farther or pick up more detail, the magnification can be upgraded to 3x with an optional objective lens. The monocular can be used as both a handheld device or it can be mounted on a weapon, helmet, or a headgear. To allow you seeing distant targets at night or to make observations in total darkness, the device features a built-in 50 mW infrared illuminator with a focusing lens.
The water-resistant housing is lightweight and durable. It offers contoured armoring for a slip-free grip and large knurled adjustment rings for easy tuning even when wearing gloves. Additional highlights are two Picatinny style points for attaching additional accessories like flashlights or lasers. The wide winged eyecup minimizes leakage of green light and provides comfortable skin contact. Also included are lens tissue, a soft carry bag, one CR-123A battery, and a tethered objective lens cap.
The water-resistant housing is lightweight and durable. It offers contoured armoring for a slip-free grip and large knurled adjustment rings for easy tuning even when wearing gloves. Additional highlights are two Picatinny style points for attaching additional accessories like flashlights or lasers. The wide winged eyecup minimizes leakage of green light and provides comfortable skin contact. Also included are lens tissue, a soft carry bag, one CR-123A battery, and a tethered objective lens cap.
Intensifier Tube | 1st generation CORE Technology intensifier |
Resolution | 60-70 lp/mm |
Infrared Illuminator | Built-in Power: 50 mW Wavelength: 810 nm Minimum focus: 9.8' (3 m) |
Magnification | 1x |
Lens System | 35mm, f/1.7 |
Field of View | 30° |
Minimum Focus Distance | 0.82' (0.25 m) |
Adjustable Diopter | +5 to -5 |
Exit Pupil | 8 mm |
Eye Relief | 0.78" (20 mm) |
Battery / Runtime | 1 x CR-123A lithium or rechargeable battery / 40 hr |
Tripod Mount | Yes |
Weatherproof Rating | Water-resistant |
Operating Temperature | -40 to 122°F (-40 to 50°C) |
Storage Temperature | -58 to 140°F (-50 to 60°C) |
Dimensions (L x W x H) | 6.3 x 1.9 x 3.2" (159 x 49 x 82 mm) |
Weight | 13 oz (0.4 kg) |
