Product Description
With 14-bit Analog/Digital conversion, an ISO range from 100-12800 (expandable to 25600) and Multi Shot Noise Reduction, the Rebel T5i offers sharp details, accurate colors and low-noise imaging in both bright and low-light shooting situations. Its 9-point all cross-type autofocus system provides fast focusing when shooting with the viewfinder, and Hybrid CMOS AF increases autofocus speeds when shooting in Live View. The Rebel T5i can continuously shoot up to 5 fps.
A 3.0" Clear View II Vari-angle Touchscreen LCD with 1,040k-dot resolution provides composition and playback viewing. Its tilt and swivel capability makes it easy to compose your shots at odd angles, and a smudge-resistant coating keeps the monitor clear. Intuitive touchscreen operation includes Touch Autofocus.
Full HD 1080p at 30 fps and 24 fps is supported with Movie Servo for continuous autofocus during shooting. Manual exposure is provided in video mode and 60 fps is possible when shooting at 720p HD. A built-in stereo microphone with manual audio level adjustment is provided for quality audio recording with your videos.
Scene Intelligent Auto Mode automatically makes the optimal camera adjustments based on scene recognition and improved scene detection is particularly helpful when shooting night scenes. Advanced imaging features such as Handheld Night Scene and HDR Backlight Control make capturing difficult shots easy, and seven Creative Filters add expressive touches to your images and can even be viewed in real time during Live View shooting.

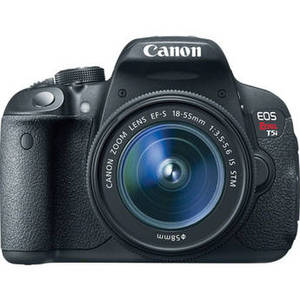

The EOS Rebel T5i is compatible with the full line of Canon EF and EF-S lenses. It is paired here with the EF-S 18-55mm f/3.5-5.6 IS STM lens, which offers wide-angle to standard focal length shooting specifically designed for APS-C cameras. It is equivalent to a 28.8-88mm focal length in the 35mm format, and its minimum focus distance is 9.8". This lens features Canon's Optical Image Stabilization system, providing 4-stops of compensation for blur caused by slow shutter speeds when shooting hand-held in low light or at longer focal lengths. An internal focusing system provides fast autofocus, and with a Stepping Motor (STM) and six-group zoom system it supports the Rebel T5i's Movie Servo AF feature for smooth and quiet continuous autofocus during video recording. Manual focus override is possible. A high precision aspherical element reduces chromatic aberration throughout the zoom range for sharp imaging, and Canon lens coatings provide accurate color balance and minimal ghosting and flare.
| Imaging | |
| Lens Mount | Canon EF Canon EF-S |
| Camera Format | Canon APS-C (1.6x Crop Factor) |
| Pixels | Actual: 18.5 Megapixel Effective: 18 Megapixel |
| Max Resolution | 17.9 MP: 5184 x 3456 |
| Aspect Ratio | 3:2 |
| Sensor Type / Size | CMOS, 22.3 x 14.9 mm |
| File Formats | Still Images: JPEG, RAW Movies: MOV, MPEG-4 AVC/H.264 Audio: Linear PCM |
| Bit Depth | 14-Bit |
| Dust Reduction System | Yes |
| Memory Card Type | SD SDHC SDXC |
| Focus Control | |
| Focus Type | Autofocus |
| Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S) |
| Autofocus Points | 9 |
| Viewfinder/Display | |
| Viewfinder Type | Pentamirror, Optical |
| Viewfinder Coverage | 95% |
| Viewfinder Magnification | Approx. 0.87x |
| Diopter Adjustment | -3 to +1 m |
| Display Screen | 3" Rear Touchscreen Tilting Live Preview LCD |
| Screen Coverage | 100% |
| Exposure Control | |
| ISO Sensitivity | Auto, 100-12800 (Extended Mode: 100-25600) |
| Shutter | Type: Electronic & Mechanical Speed: 30 Second |
| Metering Method | Multi-Zone Metering, Center-Weighted Average Metering, Average Metering, Partial Metering, Spot Metering |
| Exposure Modes | Modes: Programmed Auto, Manual, Aperture Priority, Auto, Shutter Priority, Flash Off Metering Range: EV 1.0 - EV 20.0 Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV Steps) |
| White Balance Modes | Tungsten, Cloudy, Fluorescent (White), Custom, Sunset, Daylight, Flash, Twilight, Shade, Auto |
| Flash | |
| Built-in Flash | Yes |
| Flash Compensation | -2 EV to +2 EV (in 1/3 or 1/2 EV steps) |
| Dedicated Flash System | eTTL Remote Firing |
| External Flash Connection | Hot Shoe |
| AV Recording | |
| Video Recording | Yes, NTSC/PAL |
| File Size | 1920 x 1080p (Full HD) 1280 x 720p (HD) 640 x 480p (SD) |
| Frame Rate | @ 1920 x 1080: 30 fps, 25 fps, 24 fps @ 1280 x 720: 60 fps, 50 fps @ 640 x 480: 30 fps, 25 fps |
| Exposure Control | Auto: Shutter Speed, Aperture, ISO Manual: Shutter Speed, Aperture, ISO |
| ISO Sensitivity | Auto, 100 - 6400, Expandable to 12800 |
| Exposure Compensation | -3 EV to +3 EV (in 1/3 EV steps) |
| Focus | Auto Manual Continuous Auto |
| Max Video Clip Length | 1920 x 1080: 29 Minutes, 59 Seconds 1280 x 720: 29 Minutes, 59 Seconds 640 x 480: 29 Minutes, 59 Seconds |
| Audio Recording | Optional External Mic: With Video (Stereo) |
| Performance | |
| Shutter Lag | 0.075 seconds |
| Self Timer | 2 Seconds, 10 Seconds |
| Connectivity | AV Output HDMI C (Mini) USB 2.0 |
| Power | |
| Battery | 1 x LP-E8 Rechargeable Lithium-Ion Battery Pack |
| AC Power Adapter | ACK-E8 (Optional) |
| Operating/Storage Temperature | Operating 32 to 104°F (0 to 40°C) Humidity: 0 - 85% |
| Physical | |
| Dimensions (W x H x D) | 5.2 x 3.9 x 3.1" / 13.2 x 9.9 x 7.9 cm |
| Weight | 18.52 oz / 525.04 g Body Only without battery and card |
| Warranty Length | None |
| Kit Lens | |
| Focal Length | 18 - 55mm Comparable 35mm Focal Length: 28.8 - 88 mm |
| Aperture | Maximum: f/3.5 - 5.6 |
| Angle of View | 74° 20' - 27° 50' |
| Minimum Focus Distance | .82' (.25 m) |
| Magnification | 0.28x |
| Maximum Reproduction Ratio | 1:3.57 |
| Optical Design | 13 Elements in 11 Groups |
| Autofocus | Yes |
| Image Stabilization | Yes |
| Filter Thread | Front: 58 mm |
| Dimensions (DxL) | Approx. 2.7 x 3.0" (68.58 x 76.20 mm) |
| Weight | 7.23 oz (205 g) |
