Product Description

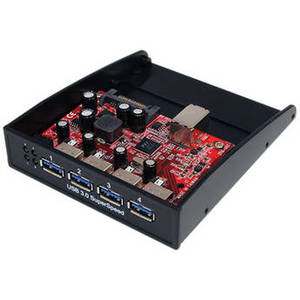

The black 3.5/5.25" USB 3.0 Front Panel 4-Port Hub from StarTech turns any available 3.5" (8.89cm) computer case front bay into a 4-port USB 3.0 hub. Using only a single USB connection, this front panel hub adds four easily accessible USB ports to the front of your computer case through a 3.5" (8.89cm) bay or through a 5.25" (13.3cm) bay using the optional Front Bay Bracket Adapter accessory. Each of the added ports are compliant with USB 3.0 standard, which support up to 5 Gb/s of bandwidth (10x faster than the USB 2.0 standard) and up to 900mA of power.
| Hardware | |
| Ports | 4 |
| Interface | USB 3.0 |
| Chipset ID | VLI - VL810 |
| Connectors | |
| Internal Ports | SATA power (15-pin) plug USB 3.0 B (9-pin; SuperSpeed) female |
| External Ports | 4 x USB 3.0 A (9-pin; SuperSpeed) female |
| Performance | |
| Type and Rate | USB 3.0 - 5 Gb/s |
| Software | |
| OS Compatibility | Windows XP (32/64-bit)/Server 2003 (32/64-bit)/Server 2008 R2/Vista (32/64-bit)/7 (32/64-bit)/8 (32/64-bit) |
| Other Specs | |
| Enclosure Type | Plastic |
| LED Indicators | 4 x USB device link (green) |
| Power | USB powered |
| Environmental | |
| Operating Temperature | 41 to 122°F (5 to 50°C) |
| Storage Temperature | -13 to 158°F (-25 to 70°C) |
| Humidity | 20 ~ 80% RH |
| General | |
| System and Cable Requirements | Available 3.5" (8.89 cm) front bay Available USB 3.0 type A port |
| Certifications | CE, FCC, RoHS |
| Dimensions (L x W x H) | 4.7 x 3.9 x 1" (120 x 100 x 25 mm) |
| Weight | 3.5 oz (100 g) |
