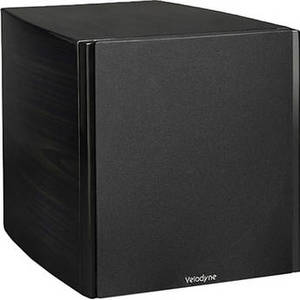

Digital Drive PLUS 15" Subwoofer (Black Gloss Ebony)
Product Description
The black gloss ebony Digital Drive PLUS 15" Subwoofer from Velodyne brings power and accuracy to your musical and home theater applications. Deftly reproducing everything from symphonies to battle scenes at less than 0.5 % distortion, this sub is powerful, yet attractive. With 8-band Auto-EQ Plus that optimizes output for your listening space, its remote-control listening presets let you switch from home theater settings to musical bass with the touch of a button. The sub is suitable for large listening rooms.
| Driver | 15.0" (38.0 cm) forward firing |
| Amplifier | Class D: 3000 W Dynamic 1250 W RMS Power |
| Frequency Response | Overall (± 3 dB): 9.0 to 300 Hz 14.6 to 120 Hz |
| THD | <0.5% (typical) |
| High Pass Crossover | 80 or 100 Hz at 6 dB/octave |
| Low Pass Crossover | 40 to 199 Hz (variable in 1 Hz increments) selectable slope Default: 80 Hz @ 24 dB/Octave |
| Phase | 0 to 180° (variable in 15° increments) |
| Polarity | Adjustable (±) |
| Structure | Magnet: 39.7 lb (18.0 kg) |
| Voice Coil | 6-layer, 3.0" (75.0 mm) |
| Cone Composition | Fiberglass Rohacell Laminate |
| Inputs | |
| LFE | Mono: Line level (RCA), Nominal Impedance 47 K, Balanced (XLR), Nominal Impedance 10 K |
| Input | (L&R): Line level (RCA & XLR) |
| Microphone | Balanced (Mini-XLR, cable included) |
| Level | Speaker (L&R): Bare wire, banana plugs, or spade lugs |
| Outputs | |
| Thru | (L&R): Line level (RCA & XLR) |
| Output | (L&R), High-Pass: Line level (RCA & XLR) |
| Dimensions (H x W x D) | 20.0 x 18.0 x 22.5" (50.8 x 45.7 x 57.0 cm) |
| Weight | 120.00 lb (54.43 kg) |
