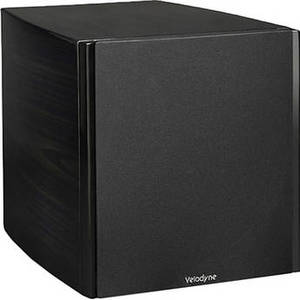

Digital Drive PLUS 18" Subwoofer (Black Gloss Ebony)
Product Description
The black gloss ebony Digital Drive PLUS 18" Subwoofer from Velodyne keeps distortion under 0.5%, and offers a good output at 115 dB maximum output.It is 5 dB louder than a sonic boom. It delivers a low frequency response between 14.4 and 120 Hz at 3 dB, and down with a 3000W dynamic amplifier. The subwoofer can be installed in large listening spaces, and allows you to sink into the experience of over 99.5% accurate bass reproduction with a lot of muscle. The 8-band Auto-EQ Plus feature, coupled with and remote-controlled presets ensure that the sub’s settings and output are optimized for your unique listening space so you get the most out of your new equipment. The sub features elegantly curved cabinetry of wood veneer in black gloss ebony.
| Driver | 18.0" (45.72 cm) forward firing |
| Amplifier | Class D: 3000 W Dynamic 1250 W RMS Power |
| Frequency Response | Overall: 8.8 to 300 Hz ± 3 dB: 14.4 to 120 Hz |
| THD | <0.5% (typical) |
| High Pass Crossover | 80 or 100 Hz at 6 dB/octave |
| Low Pass Crossover | 40 to 199 Hz (variable in 1 Hz increments) selectable slope Default: 80 Hz @ 24 dB/Octave |
| Phase | 0 to 180° (variable in 15° increments) |
| Polarity | Adjustable (±) |
| Structure | Magnet: 39.7 lb (18.0 kg) |
| Voice Coil | 6-layer, 3.0" (75.0 mm) |
| Cone Composition | Fiberglass Rohacell Laminate |
| Inputs | Mono: Line level (RCA), Nominal Impedance 47 kΩ Balanced (XLR), Nominal Impedance 10 kΩ L&R: Line level (RCA & XLR) Microphone: Balanced (Mini-XLR, cable included) Speaker Level (L&R): Supports bare wire, banana plugs, or spade lugs (sold separately) |
| Outputs | Thru (L&R): Line level (RCA & XLR) L&R, High-Pass: Line level (RCA & XLR) |
| Dimensions (H x W x D) | 22.7 x 20.7 x 25.6" (58.0 x 53.0 x 65.0 cm) |
| Weight | 140.00 lb (63.50 kg) |
