Product Description

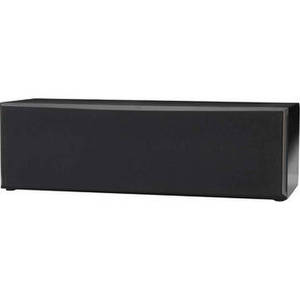

The black JBL Studio 235C center channel speaker is designed for use in a multi-channel audio system. This center channel speaker has a 2.5-way design that incorporates a 1" CMMD Lite dome tweeter and dual 6" PolyPlas woofers. With a recommended power handling of 20 - 150W , the JBL Studio 235C is compatible with a wide range of audio signals and power amplifiers.
The JBL Studio 235C features a rear-firing bass port with a slipstream designed enclosure for reduced port noise and distortion. To help the speaker remain sturdy, four rubber cushion pads are included. The JBL Studio 235C features gold-plated binding-posts that provide high-quality a high-quality connection between the center channel speaker and your connected equipment.
The JBL Studio 235C features a rear-firing bass port with a slipstream designed enclosure for reduced port noise and distortion. To help the speaker remain sturdy, four rubber cushion pads are included. The JBL Studio 235C features gold-plated binding-posts that provide high-quality a high-quality connection between the center channel speaker and your connected equipment.
| Speaker | |
| Speaker Design | Center Channel |
| Recommended Amplifier Power | 20 - 150 W |
| Impedance | 8 Ohms |
| Frequency Response | 55 Hz - 22 kHz |
| Sensitivity | 91 dB |
| Enclosure | Slipstream rear-firing bass port |
| Drivers | |
| Tweeter | 1x 1" (25 mm) CMMD Lite high-frequency dome |
| Woofer | 2x 6" (165 mm) PolyPlas low-frequency transducer |
| General | |
| Configuration | 2.5-Way |
| Speaker Connectors | Gold-plated binding-posts |
| Dimensions (H x W x D) | 7.6 x 25.4 x 9.8" (19.3 x 64.5 x 24.9 cm) |
| Weight | 26.3 lb (11.9 kg) |
