Product Description

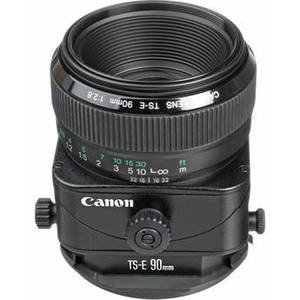

Mixing a short telephoto field of view with perspective- and depth of field control, the TS-E 90mm f/2.8 from Canon is a tilt-shift lens well-suited to producing well-corrected imagery with a slightly compressed perspective. Up to +/- 8° of tilt is possible, for focus control, and +/- 11mm of shift, to adjust perspective and composition. The tilt-shift mechanism can be rotated +/- 90° for applying movements in any direction, and a tilt-locking mechanism can be used while shooting for greater stability. The lens also employs a Gaussian-type optical design to maintain image quality throughout the aperture range and a Super Spectra coating has been applied to individual element to reduce flare and ghosting for increased contrast and color accuracy.
| Performance | |
| Focal Length | 90mm |
| Aperture | Maximum: f/2.8 Minimum: f/32 |
| Camera Mount Type | Canon EF |
| Format Compatibility | 35mm Film / Full-Frame Digital Sensor |
| Angle of View | 27° |
| Tilt/Shift | Tilt ± 8° Shifts ± 11mm |
| Minimum Focus Distance | 1.64' (50 cm) |
| Magnification | 0.29x |
| Maximum Reproduction Ratio | 1:3.4 |
| Optical Design | 6 Elements in 5 Groups |
| Diaphragm Blades | 8, Rounded |
| Features | |
| Autofocus | No |
| Physical | |
| Filter Thread | Front: 58 mm |
| Dimensions (DxL) | Approx. 2.90 x 3.46" (73.6 x 88 mm) |
| Weight | 1.24 lb (565 g) |
| Warranty Length | Limited 1-Year Warranty |
