Product Description

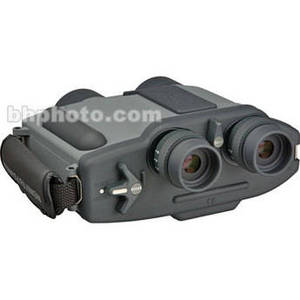

The Fujinon S1640D 16x40 Stabiscope Binocular is the world's ultimate image-stabilized binocular unit, using gyroscopic stabilization to counteract any movements applied to the binocular, whether from shaky hands or speeding watercrafts. Unlike all other stabilizers, the Stabiscope's ±5° of compensation will work with the optics aimed in any axis. A user can aim the Stabiscope straight up or down, at the zenith or nadir, and still enjoy stable viewing-making the Stabiscope the most sensible choice for law enforcement use from a helicopter. This 16x magnification unit is designed for longer-distance observation, with a 167' minimum distance.
The Stabiscope also is compatible with multiple power sources. It can be powered with 12-32 VDC electrical systems found on most land, sea, and air vehicles, as well as four "AA" batteries or a single 2CR5 battery.
The Stabiscope's designed for either left- or right-hand use, and optional accessories include polarizing filters and eyecups.
| Prism Type | Roof |
| Magnification | 16x |
| Objective Lens Diameter | 40 mm |
| Angle of View | 3.4° (actual) |
| Field of View | 178.5' @ 1000 yd / 59.5 m @ 1000 m |
| Minimum Focus Distance | 167.3' / 51 m |
| Exit Pupil Diameter | 2.5 mm |
| Eye Relief | 12 mm |
| Interpupillary Adjustment | 60.0 - 70.0 mm / 2.4 - 2.8" |
| Dioptric Correction | ±5 |
| Stabilization Freedom | ±5° |
| Focus Type | Individual |
| Tripod Mount | None |
| Dimensions | 8.3 x 3.5 x 7.9" / 21.1 x 8.9 x 20.1 cm |
| Weight | 3.92 lb / 1.78 kg |
