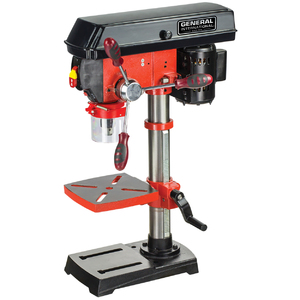

General International 10" - 5 speed 3A Bench mount drill press with laser system and LED light-DP2002

General International’s 10 inch 5 Speed Drill Press delivers the power you need for your garage or work shop. Loaded with features you would expect in a more industrial type drill presses. Choose from 5 speeds to perfectly match the ideal cutting conditions you need for your material. Featuring our global patented cross-pattern precision laser guide system and unique built-in LED work light, this drill press is perfect for home or worksite. General’s 10 inch swing drill press with laser centering device is a powerhouse for your shop. Packed with features that you’ll find in larger more industrial type drill presses. Power through metal, wood and other materials with ease. Change from five speeds to target the exact RPM right for your project (620-3100 RPM). Construction of solid cast iron provides sturdiness and reliability. Its powerful induction motor features ball bearings for an extended life, all combining together with smooth and balanced performance at any speed. The 1/2” chuck gives you versatility with a variety of bits. Worktable bevels 45° left and right for those tricky operations for the perfect angles consistently. Base has predrilled holes for mounting onto a bench or work stand. Our patented X-pattern laser locks-on to your drill points saving on guesswork and sparing expensive materials. A very versatile and valuable tool for any shop especially when you expand its range of use with optional accessories such as mortising attachment, drum sanders, circle cutters, etc… Since 1947 General has proudly produced innovative powered tools focused on value delivering meaningful features that will help you complete and enjoy the work as much as the project. Includes a 2 year limited warranty

• 375 Watt, 120V~60Hz, Amp: 3.1
• Swing: 10 in., Drilling/Chuck Capacity: 1/2 in., Taper: JT33
• Global patented cross-pattern precision laser light & unique built-in LED work light
• Alignment & centering guide
• Quill Stroke: 2 in., Table tilts to any angle with a 0-45° scale
• Induction motor 5 speeds: 620-3100 rpm
• Adjustable threaded-rod depth stop with scale
• Soft grip feed handles
• Easy-access safety switch with removable security key
• Transparent flip-up chuck safety guard
• Heavy, Solid Cast iron & steel construction mountable base & housing
• CSA Certified, 62lbs
• Manufacturing facilities are certified to ISO9001 & ISO14001 International standards.
• Torque: 570RPM @ 8.38 in./lb; 1000RPM @ 4.77 in./lb; 2000RPM @ 1.9 in./lb; 3050RPM @ 1.57 in./lb
• 2 Year Limited Warranty

Specifications

• Certifications

  • CSA Listed: Yes

• Color

  • Color/Finish: Red

• Cord

  • Cord Length (ft.): 6
  • Cord Type: 18 gauge
  • Cord Management: Manual Wrap

• Dimensions

  • Table Dimensions (LxW): 6.375 x 6.375
  • Height (in.): 31
  • Length (in.): 21
  • Width (in.): 8

• General Features

  • Table Movement: Tilt
  • Table Material: Cast iron
  • Spindle Lock: Keyless
  • Spindle Speed: 5
  • Table Swivel: Yes

• Handles

  • Number of Handles: 3
  • Handle Type: Soft Grip

• Installation

  • Assembly Required: Assembly Required

• Materials

  • Housing Material: Cast Iron

• Motor-Engine

  • Motor Voltage: 120
  • Amps: 3.1
  • Motor/Engine Type: 120V 60Hz single capacitor drip proof induction
  • RPM: 620 - 3100

• Product Overview

  • Chuck Size: 1/2 in.
  • Table Tilt (Right and Left): 0-45 degrees
  • Spindle Taper: JT33
  • Spindle Travel (in.): 2.375
  • Style: Bench
  • Spindle Distance to Base (in.): 15
  • Number of Speeds: 5
  • General Warranty: 2 Year
  • Item Weight (lbs.): 62
  • Swing (in.): 10

• Shipping Dimensions

  • length: 21.65
  • height: 9.65
  • width: 15

• Size

  • Column Diameter (in.): 2.25

• Worklight

  • Number Of Heads: Single Head
