QBiC Panorama X Panoramic VR Camera System


From Elmo | Model #: ELPANARAMAX



See more in


QBiC Panorama X Panoramic VR Camera System

Product Description

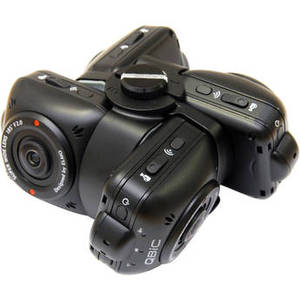

The QBiC Panorama X from Elmo is a camera system that features four individual QBiC MS-1 XP cameras and a specially designed rig to capture 180° vertical and 360° horizontal panoramic video. Each camera supports 1080p video recording at up to 60 fps as well as 5MP photo capture and is equipped with an ultra wide lens with a 185° diagonal angle of view, which makes capturing 360° panoramic video possible with only four cameras. And because the cameras don't use dome lens covers like some other 360° options, they are less prone to unsightly reflections or glare. Footage is recorded internally within each camera to microSD cards up to 64GB, with simultaneous record triggering of all four cameras possible using the QBiC app for iOS and Android devices. The resulting footage is then stitched together using a separately available third-party editing software.
Camera
Sensor 1-Chip 1/2.3" CMOS
Effective Pixels 4,769,856 MP (Video)
Optics
Maximum Aperture f/2
Minimum Focusing Distance 11.8" / 30.0 cm
Angle of View  185°
Sensor
Pixel Gross
Focal Length
35mm-Equivalent Focal Length
Maximum Aperture
Minimum Focusing Distance
Fixed Focus
Angle of View
Recording
Recording Media microSD/HC/XC (64 GB Maximum)
Video Format 1920 x 1080p at 30/60 fps (MP4)
1280 x 720p at 30/60/120 fps (MP4)
848 x 480p at 240 fps (MP4)
800 x 480p (MP4)
400 x 240p (MP4)
Still Image Resolution JPEG: 5 Megapixel
Audio Format AAC
Exposure Control
Photo ISO Range
Video ISO Range
Streaming ISO Range
Exposure Modes Modes: Auto, Manual
Features
IP Rating
White Balance Modes Manual
Built-In Mic Yes
Built-In Speaker Yes
Wi-Fi Yes
Tripod Mount 1/4" - 20
Input/Output Connectors
Outputs 1 x Micro-HDMI (Type D)
1 x USB Micro-B
General
Battery Rechargeable Lithium-Ion Polymer Battery Pack, 3.7 VDC, 1000 mAh
Max Runtime: 1.7 Hours per Charge
Charging Method USB
Dimensions (W x H x D) 3.2 x 3.2 x 2.6" / 81.1 x 81.1 x 65.0 mm with four cameras mounted on the rig
Weight 1.53 lb / .694 kg with four cameras mounted on the rig
