Product Description

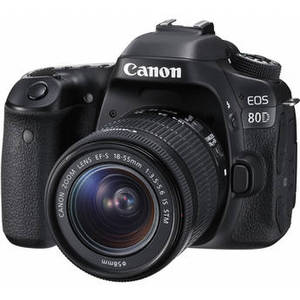

Characterized by versatile imaging specs, the Canon EOS 80D further clarifies itself using a pair of robust focusing systems and an intuitive design. Featuring a 24.2MP APS-C CMOS sensor and DIGIC 6 image processor, this sleek DSLR is capable of capturing high-resolution images at up to 7 fps and Full HD 1080p60 video, both with reduced noise and high sensitivity up to an expanded ISO 25600 for working in difficult lighting conditions. When working with the optical viewfinder, an apt 45-point all cross-type AF system affords fast performance in a range of lighting conditions for tracking moving subjects and working in low light, while the Dual Pixel CMOS AF system benefits live view shooting and movie recording by providing a smooth, natural focusing quality akin to the way a camcorder acquires focus. Touch-to-focus is availed by the large 3.0" 1.04m-dot touchscreen LCD, which also sports a swiveling vari-angle design for working from high and low angles with ease. Additionally, built-in Wi-Fi with NFC allows you to pair mobile devices with the camera to wirelessly transfer files for sharing your photos and movies online. More than just a well-connected DSLR, the 80D is equally matched in imaging versatility due to its inclusion of multimedia feature-sets for stills shooting and movie recording.
Included with the camera body is the EF-S 18-55mm f/3.5-5.6 IS STM lens; a versatile everyday lens that encompasses a 28.8-88mm equivalent focal length range. The STM stepping motor helps to achieve near-silent focusing when used during video recording and the Optical Image Stabilizer system helps to minimize the appearance of camera shake.
Included with the camera body is the EF-S 18-55mm f/3.5-5.6 IS STM lens; a versatile everyday lens that encompasses a 28.8-88mm equivalent focal length range. The STM stepping motor helps to achieve near-silent focusing when used during video recording and the Optical Image Stabilizer system helps to minimize the appearance of camera shake.
Imaging | |
Lens Mount | Canon EF Canon EF-S |
Camera Format | APS-C (1.6x Crop Factor) |
Pixels | Actual: 25.8 Megapixel Effective: 24.2 Megapixel |
Max Resolution | 24 MP: 6000 x 4000 |
Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
Sensor Type / Size | CMOS, 22.5 x 15 mm |
File Formats | Still Images: JPEG, RAW Movies: MOV, MP4, MPEG-4 AVC/H.264 Audio: AAC, Linear PCM (Stereo) |
Bit Depth | 14-Bit |
Dust Reduction System | Yes |
Memory Card Type | SD SDHC SDXC |
Focus Control | |
Focus Type | Autofocus |
Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S) |
Autofocus Points | Phase Detection: 45 (45 Cross-Type) |
Viewfinder/Display | |
Viewfinder Type | Pentaprism |
Viewfinder Eye Point | 22.00 mm |
Viewfinder Coverage | 100% |
Viewfinder Magnification | Approx. 0.95x |
Diopter Adjustment | -3.0 to +1.0 m |
Display Screen | 3" Rear Touchscreen Swivel LCD |
Screen Coverage | 100% |
Diagonal Angle of View | 170.0° |
Exposure Control | |
ISO Sensitivity | Auto, 100-16000 (Extended Mode: 100-25600) |
Shutter | 30 Second , Bulb Mode |
Remote Control | RC-6, RS-60E3, TC-80N3 (Optional) |
Metering Method | Center-Weighted Average Metering, Evaluative Metering, Partial Metering, Spot Metering |
Exposure Modes | Modes: Aperture Priority, Manual, Program, Shutter Priority Metering Range: EV 1.0 - EV 20.0 Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV Steps) |
Buffer/Continuous Shooting | Up to 7 fps at 24.2 MP for up to 25 Frames in Raw Format Up to 7 fps at 24.2 MP for up to 110 Frames in JPEG Format Up to 3 fps at 24.2 MP |
White Balance Modes | Tungsten, Cloudy, Fluorescent (White), Custom, Daylight, Flash, Color Temperature, Shade, Auto |
Flash | |
Built-in Flash | Yes |
Guide No. | 39.37' (12 m) ISO100 |
Max Sync Speed | 1 / 250 Second |
Flash Compensation | -3 EV to +3 EV (in 1/3 or 1/2 EV steps) |
Dedicated Flash System | eTTL |
External Flash Connection | Hot Shoe |
AV Recording | |
Video Recording | Yes, NTSC |
Video Format | 1920 x 1080p at 23.98/29.97 fps (90 Mb/s MOV) 1920 x 1080p at 59.94 fps (60 Mb/s MOV) 1920 x 1080p at 23.98/29.97 fps (30 Mb/s MP4) 1920 x 1080p at 29.97 fps (12 Mb/s MP4) 1280 x 720p at 59.94 fps (26 Mb/s MP4) 1280 x 720p at 29.97 fps (4 Mb/s MP4) |
Aspect Ratio | 16:9 |
Exposure Control | Auto: Shutter Speed, Aperture, ISO Manual: Shutter Speed, Aperture, ISO |
ISO Sensitivity | Auto/Manual, 100 - 12800, Expandable to 25600 |
Exposure Compensation | -3 EV to +3 EV (in 1/3 or 1/2 EV steps) |
Focus | Auto Manual Continuous Auto |
Max Video Clip Length | 1920 x 1080: 29 Minutes, 59 Seconds |
Audio Recording | Built-In Mic: With Video (Stereo) Optional External Mic: With Video (Stereo) |
Performance | |
Shutter Lag | 0.06 seconds |
Self Timer | 10 Seconds, 2 Seconds |
Interval Recording | Yes |
Connectivity | 1/8" Headphone, 1/8" Microphone, HDMI C (Mini), USB 2.0 |
Wi-Fi Capable | Yes |
Power | |
Battery | 1 x LP-E6N Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1865 mAh |
AC Power Adapter | AC-E6N (Optional) |
Operating/Storage Temperature | Operating 32 to 113°F (0 to 45°C) Humidity: 0 - 85% |
Physical | |
Dimensions (W x H x D) | 5.5 x 4.1 x 3.1" / 139.0 x 105.2 x 78.5 mm |
Weight | 1.61 lb / 730 g based on CIPA guidelines |
Warranty Length | None |
Kit Lens | |
Focal Length | 18 - 55mm Comparable 35mm Focal Length: 28.8 - 88 mm |
Aperture | Maximum: f/3.5 - 5.6 Minimum: f/22 - 38 |
Angle of View | 74° 20' - 27° 50' |
Minimum Focus Distance | 9.84" (25 cm) |
Magnification | 0.36x |
Maximum Reproduction Ratio | 1:2.78 |
Optical Design | 13 Elements in 11 Groups |
Diaphragm Blades | 7 |
Autofocus | Yes |
Image Stabilization | Yes |
Filter Thread | Front: 58 mm |
Dimensions (DxL) | Approx. 2.72 x 2.96" (69.1 x 75.2 mm) |
Weight | 7.23 oz (205 g) |
