Product Description
Enjoy an immersive surround sound experience with the Onkyo HT-S3800 5.1-Channel Home Theater System. It delivers up to 60W per channel at 8 Ohms for robust audio playback. Built-in Bluetooth 3.0 connectivity allows you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets.

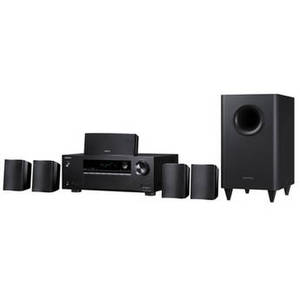

The included speaker package features a 5.1 configuration with two front speakers, a center channel, two surround speakers, and a 6.4" passive subwoofer. The receiver has four HDMI inputs for interfacing audio and video sources and supports the pass-through of 4K resolution. You can connect it to your display with its HDMI output, which supports ARC for the reproduction of TV-based audio. Built-in lossless audio support allows you to take advantage of dynamic surround sound formats like DTS-HD Master Audio and Dolby TrueHD.
The included speaker package features a 5.1 configuration with two front speakers, a center channel, two surround speakers, and a 6.4" passive subwoofer. The receiver has four HDMI inputs for interfacing audio and video sources and supports the pass-through of 4K resolution. You can connect it to your display with its HDMI output, which supports ARC for the reproduction of TV-based audio. Built-in lossless audio support allows you to take advantage of dynamic surround sound formats like DTS-HD Master Audio and Dolby TrueHD.
| Receiver | |
| Channels | 5.1 |
| Power Output | 60 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.7% THD, 2-channels driven, FTC 105 W per channel @ 6 Ohms, 1 kHz, 1% THD, 1-channel driven |
| THD & Noise | 0.06% (20 Hz to 20 kHz, 8 Ohms, 1-channel driven, 50 W) |
| Input Sensitivity and Impedance | 250 mV / 47 kOhms (line) |
| Frequency Response | 10 Hz to 100 kHz / 0 dB, -3 dB (Direct Mode) |
| Tone Control | ±10 dB, 100 Hz (bass) ±10 dB, 10 kHz (treble) |
| Signal-to-Noise Ratio | 98 dB (line, IHF-A) |
| Impedance | 6 to 16 Ohms |
| Video | |
| Input Sensitivity/Output Level and Impedance | 1.0 Vp-p ±5% / 75 (composite) |
| Tuner Section | |
| Tuning Frequency Range | FM: 87.5 MHz to 107.9 MHz AM: 530 kHz to 1710 kHz |
| FM/AM Preset Memory | 40 Stations |
| Connectivity | |
| Bluetooth | Version: 3.0 Specification Class: 2 Line-of-Sight Range: Approximately 33' (10 m) Frequency Range: 2.4 GHz Supported Profile: A2DP Supported Codecs: SBC (Subband Codec), AAC |
| Audio Return Channel (ARC) | Yes |
| Inputs | 4 x HDMI 2 x Composite video 1 x Digital coaxial 1 x Optical TOSLINK 3 x Stereo RCA |
| Outputs | 1 x HDMI 1 x Composite video 1 x USB (5 V, 0.5 A) 1 x 1/4" (6.35 mm) headphone (front) |
| Other Connections | 1 x AM antenna 1 x FM antenna |
| Speaker Connectors | 6 x Spring-clip connector pairs |
| Speaker System | |
| Channels | 5.1 |
| Speaker Type | Front, Center, Surround: Closed-box, full-range Subwoofer: Bass-reflex, passive |
| Drivers | Front, Center, Surround: 1x 3" (7.7 cm) Cone Subwoofer: 1x 6.4" (16 cm) Cone |
| Frequency Response | Front, Surround: 80 Hz to 20 kHz Center: 70 Hz to 20 kHz Subwoofer: 28 Hz to 5 kHz |
| Output Sound Pressure Level | Front/Surround/Subwoofer: 83 dB/W/m Center: 84 dB/W/m |
| Maximum Input Power | Front/Center/Surround: 150 W Subwoofer: 100 W |
| Nominal Impedance | Front/Height/Center/Surround: 6 ohms |
| Input Sensitivity/Impedance | 250 mV / 47 kOhms (Line) |
| General | |
| Power Consumption | Operational: 190 W Standby: 0.45 W |
| Power Requirements | 120 VAC, 60 Hz |
| Dimensions (W x H x D) | Receiver: 17.1 x 6.6 x 12.9" (435 x 168 x 326.5 mm) Each Front/Surround Speaker: 4 x 5.5 x 3.75" (100 x 140 x 95 mm) Center Speaker: 9.5 x 3.75 x 3.75" (240 x 95 x 95 mm) Subwoofer: 9.1 x 16.5 x 14.1" (230 x 418 x 358 mm) |
| Weight | Receiver: 17 lb (7.7 kg) Each Front/Surround Speaker: 1.3 lb (0.6 kg) Center Speaker: 1.5 lb (0.7 kg) Subwoofer: 11.6 lb (5.3 kg) |
