Product Description

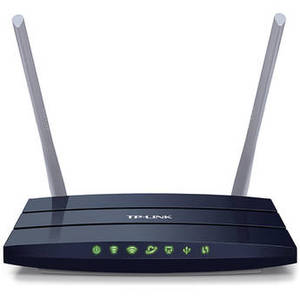

The Archer C50 AC1200 Wireless Dual Band Router features 802.11ac wireless speeds that is three times faster than wireless 802.11n. It combines the 2.4 GHz and 5 GHz bands to provide a wireless data transfer rate of up to 1200 Mbps. These features help you watch HD videos and play fast-paced games without any lag. Built with two antennas, the router uses the external antennas to support the 5 GHz band for intensive tasks while the 2.4 GHz band is designed for simple tasks such as web browsing and emailing.
The Archer C5 router connects to your Internet modem using the single WAN port and offers four Ethernet jacks that provide access to the Internet for computers having only a wired RJ-45 port. In addition, it comes with one USB 2.0 Port so you can share your printer or USB storage device. For convenience, the TP-LINK Tether app provides access to the router using your iOS and Android devices. It also lets you set up the router, configure parental controls, share media as well as checking the status of the router and settings. Included with the router are two detachable antennas, a power supply, resource CD, and an Ethernet cable.
The Archer C5 router connects to your Internet modem using the single WAN port and offers four Ethernet jacks that provide access to the Internet for computers having only a wired RJ-45 port. In addition, it comes with one USB 2.0 Port so you can share your printer or USB storage device. For convenience, the TP-LINK Tether app provides access to the router using your iOS and Android devices. It also lets you set up the router, configure parental controls, share media as well as checking the status of the router and settings. Included with the router are two detachable antennas, a power supply, resource CD, and an Ethernet cable.
Hardware Features | |
Interface | 4 x 10/100 Mbps LAN Ports 1 x 10/100 Mbps WAN Port 1 x USB 2.0 Port |
Buttons | WPS/Reset Button Wireless On/Off Switch Power On/Off Button |
External Power Supply | 12 VDC, 1.5 A |
Antenna Type | 2 x Dual Band antennas |
Wireless Features | |
Wireless Standards | IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/g/b 2.4 GHz |
Frequency | 5 GHz and 2.4 GHz |
Signal Rate | 5 GHz: up to 867 Mbps 2.4 GHz: up to 300 Mbps |
Reception Sensitivity | 5 GHz 11a 54M: -76dBm 11ac VHT20 MCS8: -70 dBm 11ac VHT40 MCS9: -65.5 dBm 11ac VHT80 MCS9: -61.5dBm 2.4 GHz 11g 54M: -76 dBm 11n HT20 MCS7: -74 dBm 11n HT40 MCS7: -71 dBm |
Transmit Power | CE < 20 dBm (2.4 GHz) < 23 dBm (5 GHz) FCC < 30 dBm |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK encryption |
Software Features | |
Quality of Service (QoS) | WMM, Bandwidth Control |
WAN Type | Dynamic IP, Static IP, PPPoE, BigPond, L2TP(Dual Access), PPTP (Dual Access) |
Management | Access control Local management Remote management |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, Comexe, NO-IP |
VPN Pass-through | PPTP, L2TP, IPSec |
Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security | DoS, SPI Firewall IP Address Filter / MAC Address Filter / Domain Filter IP and MAC Address Binding |
Protocols | Supports IPv4 and IPv6 |
USB Sharing | Support Samba (storage), FTP server, media server, printer server |
Guest Network | 1 x 2.4 GHz guest network 1 x 5 GHz guest network |
Environmental Specifications | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -40 to 158°F / -40 to 70°C |
Operating Humidity | 10 to 90% non-condensing |
Storage Humidity | 5 to 90% non-condensing |
General | |
Certification | CE FCC RoHS |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, 7, 8, 8.1, and 10 MAC OS NetWare UNIX or Linux |
Dimensions (WxDxH) | 7.2 x 4.9 x 1.3 / 182.95 x 123.5 x 32.1 mm) |
