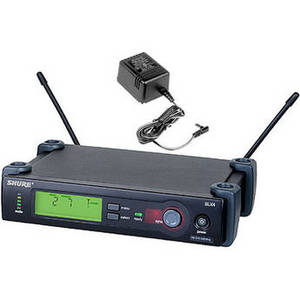

SLX4L Wireless Receiver with Antennas and Power Supply (470-494MHz)
Product Description
The Shure SLX4L is a UHF wireless microphones receiver, designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more.
| Type of Receiver | UHF Diversity Half-Rack Mountable |
| RF Carrier Frequency Range | 470-494MHz |
| Approx. Working Range | 300' (100 m) |
| Overall Frequency Response | 45Hz - 15KHz ±2dB |
| Signal-to-Noise Ratio | > 100dB A-weighted |
| # Of Channels | 960 operating frequencies across a 24MHz |
| Type of Output(s) | XLR connection: 200 Ω 1/4" connection: 1kΩ |
| Headphone Monitoring | No |
| Power Requirements | 12-18 VDC at 150mA, supplied by external power supply |
| Display | Backlit LCD |
| Mounting Options | Short and Long Rack-Mount Hardware Included |
| Antenna Type | Dual 1/4 wave BNC type |
| Dimensions | 1.65 x 7.76 x 5.26" (42 x 197 x 134mm) |
| Weight | 28.78 oz (816g) |
