RE-2 UHF Wireless Bodypack Instrument System - RE-2 Receiver, BPU-2 Beltpack Transmitter and 1/4" Phone Instrument Cable (Band A: 648 - 676 MHz)


From Electro-Voice | Model #: ELRE2GA



See more in


RE-2 UHF Wireless Bodypack Instrument System - RE-2 Receiver, BPU-2 Beltpack Transmitter and 1/4" Phone Instrument Cable (Band A: 648 - 676 MHz)

Product Description

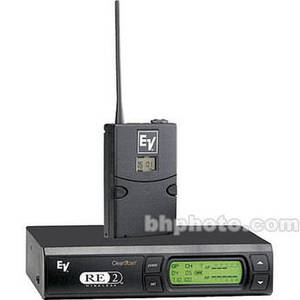

The Electrovoice RE-2 Series wireless microphone systems provide true professional wireless technology featuring UHF transmission, diversity reception and rugged, road worthy design. The RE-2 bodypack system features the RE-2 receiver and BPU-2 body-pack transmitter.

The RE-2 receiver is designed to provide clear reception in any environment. UHF reception eliminates noise and interference caused by crowded frequency bands. Diversity technology further reduces drop-out and interference utilizing dual internal receivers competing for the strongest possible reception. Over 1,112 possible channels are user programmable in 25kHz steps over a 24MHz bandwidth. The ClearScan feature automatically searches for clear group and channel settings allowing quick setup. The RE-2 features a unique "Guitar" setting that optimizes a standard receiver / bodypack for use with a guitar.

The BPU-2 bodypack transmitter is versatile and rugged featuring a durable metal construction. The transmitter features a standard TA4F (female) connection allowing connection to all EV microphones featuring a TAFM (male) output. The transmitters input level is adjustable allowing input from microphones and instruments. Dual Compander technology processes high and low frequency signal separately providing exceptional sound quality for guitars and other instruments or line level signals. The BPU-2 features a unique "smart" battery which renders it impossible to put the battery in wrong, enabling quick changes on stage.

System
Type of System UHF Frequency Agile Diversity
RF Carrier Frequency Range Band A: 648 - 676 MHz (TV Channels 43 - 48)
Approx. Working Range 300'
Overall Frequency Response 50 - 15kHz +/- 2dB
Signal-to-Noise Ratio > 100dB (A)
# Of Channels 1,112 - programmable in 25kHz steps across 24MHz bandwidth
# Of Simultaneous Systems 16 - for additional consult with EV about custom programmed frequency groups
Receiver
Type of Receiver Synthesized PLL Agile UHF
Type of Outputs Balanced: 3-pin XLR - mic level
Unbalanced: 1/4" Phone - adjustable line level
Headphone Monitoring No
Power Requirements 12V AC/DC 300mA
Battery Type/Approx. Life AC powered only
Display Backlit LCD
Mounting Options Rack Mountable
Antenna Type Detachable 1/4 wave
Dimensions 1.72 x 7.50 x 5.90" (43.69 x 190.50 x 150.00mm) (H x W x D)
Weight not specified by manufacturer
Bodypack Transmitter
Type of Transmitter UHF Frequency Agile Bodypack
Type of Input Connector TA4F Microphone: pin-1 ground, pin-2 Mic input, pin-3 +5V Bias, pin-4 +5 through 3k ohm
Type of Microphone TA4-Female to 1/4" Phone Male Instrument Cable
Polar Pattern not applicable
Interchangeable Mic Heads compatible with all EV microphones featuring TA4-m type connection
Battery Type/Approx. Life 8 hours with 9-Volt alkaline battery (typical)
Mute Switch On / Off & Mute Switch (combined)
Level Control Gain Adjustment: 40dB range
Microphone / Instrument Switch: 0, -20dB
Antenna Type External 1/4 wave detachable
Display Backlit LCD
Displays - Group, Channel, Frequency and Low Battery Level
Red LED
Low Battery Indicator
Dimensions 3.8 x 2.6 x 0.92" (96.5 x 66 x 23.4mm)(H x W x D)
Weight not specified by manufacturer
