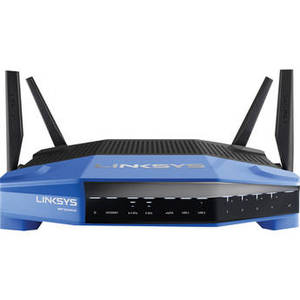

WRT3200ACM Dual-Band Wireless-AC3200 Gigabit Router
Product Description
With a 1.8 GHz enterprise grade dual-core processor the WRT3200ACM Dual-Band Wireless-AC3200 Gigabit Router from Linksys has enough processing power to handle multiple data streams simultaneously. Take advantage of enhanced wireless network functionality as the WRT3200ACM supports wireless 802.11a/b/g/n/ac networking standards and functions on both the 2.4 GHz and 5 GHz frequencies. With simultaneous dual-band connectivity you benefit from data transfer rates up to 3.2 Gbps, which is perfect for streaming HD content, online gaming, and more. This router also supports Tri-Stream 160 MHz connectivity accompanied by MU-MIMO technology offering three separate data streams for a total bandwidth of up to 2.6 Gbps.
The WRT3200ACM router features four detachable external antennas, four Gigabit Ethernet ports, one eSATA port, one USB 2.0 port, and one USB 3.0 port. The four upgradable antennas provide expansive wireless networking connectivity while the four Gigabit Ethernet ports ensure a fast, reliable, wired networking option. Additionally, the integrated eSATA port, USB 2.0 and USB 3.0 ports make it simple to attach peripherals such as external hard drives.
For enhanced networking functionality the WRT3200ACM comes equipped with Smart Wi-Fi software giving you the ability to monitor nearly every aspect of your network. Whether on a PC or mobile device you can monitor your network, set parental controls, restrict network access, and more. This router is also open-source ready giving advanced users the ability to modify the router including the option to take advantage of available open source firmware.
The WRT3200ACM router features four detachable external antennas, four Gigabit Ethernet ports, one eSATA port, one USB 2.0 port, and one USB 3.0 port. The four upgradable antennas provide expansive wireless networking connectivity while the four Gigabit Ethernet ports ensure a fast, reliable, wired networking option. Additionally, the integrated eSATA port, USB 2.0 and USB 3.0 ports make it simple to attach peripherals such as external hard drives.
For enhanced networking functionality the WRT3200ACM comes equipped with Smart Wi-Fi software giving you the ability to monitor nearly every aspect of your network. Whether on a PC or mobile device you can monitor your network, set parental controls, restrict network access, and more. This router is also open-source ready giving advanced users the ability to modify the router including the option to take advantage of available open source firmware.
Wi-Fi Technology | AC3200 MU-MIMO Dual-band Gigabit, 600+2600 Mbps |
Wi-Fi Standards | 802.11a/b/g/n/ac |
Wi-Fi Speed | AC3200 (N600 + AC2600) |
Wi-Fi Bands | 2.4 and 5 GHz (simultaneous dual-band) |
Ethernet Ports | 1 x Gigabit WAN port 4 x Gigabit LAN ports |
Other Ports | 1 x USB 3.0 port 1 x Combo eSATA/USB 2.0 port 1 x Power |
Antennas | 4 x external, dual-band, detachable antennas |
Processor | 1.8 GHz dual-core |
LEDs | Power, Internet, 2.4 GHz, 5 GHz, eSATA, USB1 (USB 2.0), USB2 (USB 3.0), LAN 1-4 (activity/10/100 Mbps), LAN 1-4 (1 Gbps), WPS |
Wireless Encryption | WPA2 Personal, WPA2 Enterprise |
VPN Support | PPTP, IPSec pass-through |
Operating Modes | Wireless Router Access Point Wired Bridge Wireless Bridge Wireless Repeater |
Storage File Systems | FAT, NTFS, and HFS+ |
Easy Setup | Browser-based setup Linksys smart Wi-Fi setup |
Operating Systems Supported | MacOS (10.X or higher), Windows 7, Windows 8.1 (Works with Windows 10) |
Minimum System Requirements | Internet Explorer 8 Safari 5 (for Mac) Firefox 8 Google Chrome |
Security | WPA/WPA2 128-bit AES link encryption |
Regulatory Compliance | FCC class B |
Certifications | FCC DFS Certified |
Open Source Compatible | Open Source ready for OpenWrt, DD-WRT |
Power Supply | Input: 100-240 V ~ 50-60 Hz; Output: 12 V, 3.0 A |
Temperature & Humidity | Operating Temperature: 32 to 104°F / -20 to 40°C Storage Temperature: -4 to 140°F / -20 to 60°C Operating Humidity: 10 to 80% non-condensing |
Dimensions | 9.68 x 7.63 x 2.04" / 245.87 x 193.80 x 51.82 mm |
Weight | 28.16 oz / 798.32 g |
