Product Description

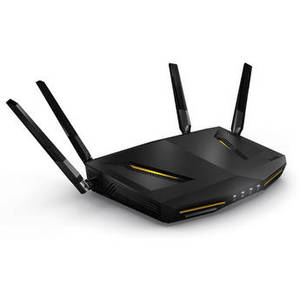

Supporting wireless data transfer speeds of up to 2600 Mbps, the Armor Z2 Wireless-AC2600 Dual Band Gigabit Router from ZyXEL can handle data intensive tasks such as streaming multimedia content, downloading large files, and more all at the same time. Backing up the enhanced data transfer speeds is integrated MU-MIMO technology designed to provide multiple data streams to reduce traffic congestion. Inside the Armor Z2 you will find a 1.7 GHz dual-core processor complete with ZyXEL's own StreamBoost technology built to handle 4K video streaming and online gaming without a hiccup.
The Armor Z2 operates on both the 2.4 GHz and 5 GHz frequencies and supports the 802.11a/b/g/n/ac wireless networking standards. Along with the 1.7 GHz dual-core processor, this router comes equipped with 512 MB of RAM and 4 GB of eMMC memory. Additionally, users can take advantage of four Gigabit Ethernet ports for fast, reliable, wired network access. Along with the four Gigabit Ethernet ports, devices like USB printers and hard drives can be plugged into either the single USB 2.0 port or single USB 3.0 port. Once connected those devices can be used by any client connected to the network.
ZyXEL has incorporated a variety of network features into this router giving the administrator complete control over virtually all aspects of the network. The built-in Usage Monitor makes it easy to see how much bandwidth is being used by various applications while Dynamic QoS functionality simplifies the process of allocating bandwidth to ensure applications have the ability to operate smoothly. Users can also connect to the router remotely using the ZyXEL ONE Connect App to track and manage network connections as well as the status of the network.
The Armor Z2 operates on both the 2.4 GHz and 5 GHz frequencies and supports the 802.11a/b/g/n/ac wireless networking standards. Along with the 1.7 GHz dual-core processor, this router comes equipped with 512 MB of RAM and 4 GB of eMMC memory. Additionally, users can take advantage of four Gigabit Ethernet ports for fast, reliable, wired network access. Along with the four Gigabit Ethernet ports, devices like USB printers and hard drives can be plugged into either the single USB 2.0 port or single USB 3.0 port. Once connected those devices can be used by any client connected to the network.
ZyXEL has incorporated a variety of network features into this router giving the administrator complete control over virtually all aspects of the network. The built-in Usage Monitor makes it easy to see how much bandwidth is being used by various applications while Dynamic QoS functionality simplifies the process of allocating bandwidth to ensure applications have the ability to operate smoothly. Users can also connect to the router remotely using the ZyXEL ONE Connect App to track and manage network connections as well as the status of the network.
System Specifications | |
Wireless Standards | IEEE 802.11 b/g/n 2.4 GHz IEEE 802.11 a/n/ac 5 GHz |
Wireless Speeds | Transmit 800 Mbps for 2.4 GHz 1733 Mbps for 5 GHz Receive 800 Mbps for 2.4 GHz 1733 Mbps for 5 GHz |
Wireless Security | WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise WPS support |
WLAN | MU-MIMO Guest Wi-Fi Wi-Fi Protected Setup (WPS) Wi-Fi Multimedia (WMM) Auto channel selection Wireless scheduling Wireless output power management MAC address filtering |
Routing | WAN type: Static IP, DHCP, PPPoE, PPTP IGMP v1/v2 Auto-IP change IPv4/IPv6 Network Address Translation (NAT) Port trigger DHCP server/client DNS relay Dynamic DNS |
NAT ALGS (Application Level Gateway) | PPTP L2TP IPSec FTP SIP H.323 RTSP IRC SNMP |
Firewall | Stateful Packet Inspection (SPI) Deny of Service (DOS) prevention MAC filter TCP/IP filter |
Application | Usage monitor ZyXEL Photo App Smart QoS (StreamBoost) Parental control ONE Connect |
USB | Mass storage support by SMB/CIFS/FTP/WebDAV Print server |
Media Server | DLNA |
System Management | Online firmware upgrade Remote management Wake on LAN UPnP |
Operation mode | Router mode Access point mode |
Hardware Specifications | |
CPU | 1.7 GHz dual core Processor |
Memory | 512 MB RAM and 4 GB eMMC |
WAN | 1 x 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support |
LAN | 4 x 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support |
Antenna | 4 x Dual-band high performance antennas |
USB | 1 x USB 2.0 port 1 x USB 3.0 port |
LED Indicator | Power/SYS Internet Wireless 2.4G/WPS Wireless 5G/WPS |
Buttons | Power switch Reset button WPS button Wireless on/off button |
Power Consumption | 25 W |
Power | 12 VDC, 3 A |
Environmental Specifications | Operating Temperature: 32 to 104°F / 0 to 40°C Operating Humidity: 10 to 90% non-condensing Storage Temperature: -22 to 158°F / -30 to 70°C Storage Humidity: 10 to 95% non-condensing |
Certifications | Safety: CE-LVD, BSMI EMC: CE, FCC, EC, BSMI |
Dimensions | 9.8 x 6.6 x 2.0" / 250 x 168 x 51 mm |
Weight | 1.26 lb / 0.57 kg |
