RT-AC66U B1 Wireless-AC1750 Dual-Band Gigabit Router


From ASUS | Model #: ASRTAC66UB1



See more in

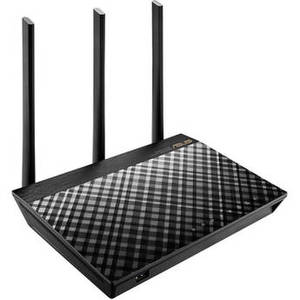

RT-AC66U B1 Wireless-AC1750 Dual-Band Gigabit Router

Product Description

Transfer large files quickly, stream multimedia content, and much more with the RT-AC66U B1 Wireless-AC1750 Dual-Band Gigabit Router from ASUS. This router operates on both the 2.4 GHz and 5 GHz frequencies allowing more data intensive tasks to be allocated to the less congested, faster 5 GHz frequency. In addition to dual-band functionality, the RT-AC66U B1 supports 802.11a/b/g/n/ac Wi-Fi network standards with data transfer rates of up to 1750 Mbps. If a wired connection is needed, this ASUS router comes equipped with four Gigabit Ethernet LAN connections as well as one USB 3.0 port and one USB 2.0 port to connect USB peripherals such as external hard drives directly to the router.

Inside the ASUS RT-AC66U B1 is a dual-core processor designed to ensure this router can handle a heavy workload such as streaming multimedia content, online gaming, VoIP devices, and more with hardly any network lag. The three external antennas ensure the wireless connection can reach long distances and with built-in MIMO and beamforming technologies users benefit from multiple connections beamed directly to connected devices. Configuring and managing your ASUS router has been greatly simplified thanks to the ASUS Router App giving a network administrator the ability to manage network traffic, diagnose connection issues, and more.
Network Standard IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6
Data Rate 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: up to 450 Mbps
802.11ac: up to 1300 Mbps
Antennas 3 x external antennas
Transmit / Receive MIMO technology
2.4 GHz 3x3
5 GHz 3x3
Operating Frequency 2.4 GHz / 5 GHz
Encryption 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise
Firewall & Access Control Firewall: SPI intrusion detection, DoS protection
Access control: Parental control, Network service filter, URL filter, Port filter
Management UPnP, IGMP v1/v2/v3, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, Universal Repeater, System Event Log
Ports 1 x RJ-45 for 10/100/1000 BaseT for WAN
4 x RJ-45 for 10/100/1000 BaseT for LAN
1 x USB 2.0
1 x USB 3.0
Button WPS Button, Reset Button, Power Button, Wireless on/off Button
LED Indicators 1 x Power
2 x Wi-Fi
1 x WAN
4 x LAN
Power Supply AC Input: 110~240 V (50~60 Hz)
DC Output: 19 V with max. 1.75 A current
OS Support Windows 10
Windows 8.1
Windows 8
Windows 7
Windows XP
Mac OS X or higher
Linux
Operating Modes Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Dimensions 8.6 x 5.8 x 1.8" / 218 x 148 x 45 mm
Weight 1.5 lb / 660 g
