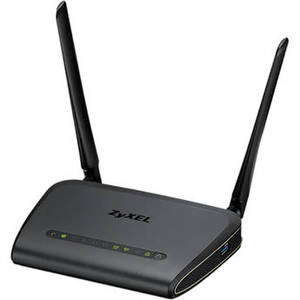

NBG6617 AC1300 MU-MIMO Dual-Band Wireless Gigabit Router
Product Description
The NBG6617 AC1300 MU-MIMO Dual-Band Wireless Gigabit Router from ZyXEL helps create a wireless network for your home and allows you to connect more devices wirelessly. Thanks to the USB 3.0 port, you can connect a USB storage device to the router and enable fast file-sharing capability across your network with up to 5 Gb/s data transfer speeds. In addition, it also supports USB printers.
The NBG6617 router's 802.11ac Wave2 MU-MIMO technology provides Wi-Fi speeds of up to 1300 Mb/s to all devices. It can also be connected to MU-MIMO compatible Wi-Fi devices. The ZyXEL ONE Connect app allows you to use your mobile device to easily manage and expand your Wi-Fi network with ZyXEL ONE Connect-ready devices. Powered by a 600 MHz quad core CPU and Gigabit network capability, the router can handle multiple networked devices without compromising on performance.
| System Specifications | |
| Wireless Standard | IEEE 802.11 b/g/n 2.4 GHz IEEE 802.11 a/n/ac 5 GHz |
| Wireless Speed | Transmit: 400 Mb/s for 2.4 GHz 867 Mb/s for 5 GHz Receive: 400 Mb/s for 2.4 GHz 867 Mb/s for 5 GHz |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA2-PSK |
| WLAN | Wave2 MU-MIMO Guest Wi-Fi WPS (Wi-Fi Protected Setup) WMM (Wi-Fi Multimedia) Auto channel selection Wireless scheduling Wireless output power management MAC address filtering |
| Routing | NAT (Network Address Translation) WAN Type: Static IP, DHCP, PPPoE DHCP server/client IGMP v1/v2 Dynamic DNS Auto-IP change IPv6 |
| Pass Through | NAT ALG: PPTP L2TP IPSec FTP SIP H.323 RTSP IRC SNMP |
| Firewall | SPI (Stateful Packet Inspection) DoS (Denial of Service Prevention) |
| Application Control | Parental control ONE Connect ZyXEL Photo |
| USB Support | Mass storage support by SMB/CIFS/FTP Print server |
| Media Server | DLNA |
| System Management | Online firmware upgrade Remote management Wake-on LAN UPnP |
| Operation mode | Router mode Access point mode |
| Hardware Specifications | |
| CPU | 600 MHz quad core Processor |
| RAM | 256 MB |
| WAN | 1 x 10/100/1000 Mb/s Ethernet RJ45 port with auto MDI/MDIX support |
| LAN | 4 x 10/100/1000 Mb/s Ethernet RJ45 ports with auto MDI/MDIX support |
| USB | 1 x USB 3.0 port |
| Antenna | External antennas |
| LED Indicator | Power/SYS WAN LAN (1 - 4) WLAN_2.4G WLAN_5G USB WPS |
| Buttons | Power on/off Reset WPS Wi-Fi on/off |
| Power | 12 VDC, 2 A |
| Power Consumption | 20 W |
| Certification | |
| Safety | CE LVD |
| EMC | CE, FCC |
| Environmental Specifications | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% (Non-condensing) |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Storage Humidity | 10 to 95% (Non-condensing) |
| Physical Specifications | |
| Dimensions (WxDxH) | 6.7 x 4.6 x 1.15" / 170 x 117 x 29.2 mm |
| Weight | 0.73 lb / 0.3 kg |
