Product Description

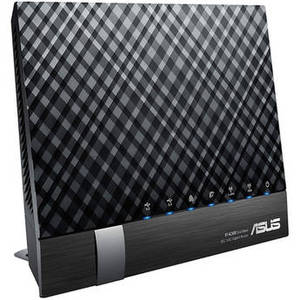

With a 5th generation 802.11ac chipset, the RT-AC56R AC1200 Wireless Dual-Band Gigabit Router from ASUS offers enhanced wireless data transfer rates of up to 1167 Mbps. In addition to supporting the 802.11ac Wi-Fi network standard, this ASUS router also operates on both the 2.4 GHz and 5 GHz frequencies making it easy to allocate more bandwidth-intensive tasks to the less congested 5 GHz frequency.
The RT-AC56R also comes equipped with four Gigabit Ethernet LAN ports making it easy to connect Ethernet enabled devices such as game consoles, computers, smart TVs, and more directly to the router. Along with Ethernet connectivity, this router features a single USB 2.0 port and a single USB 3.0 port to connect USB compatible peripherals to the network.
Setting up the RT-AC56R router is simple thanks to the three-step setup process that can be conducted from your tablet, smartphone, or computer. Once the router is plugged in, just open a web browser on your device, enter the ID and password, and begin accessing your network. Once the setup is complete, a network administrator can utilize the ASUSWRT dashboard to manage a variety of settings including Quality of Service (QoS) standards to ensure connected devices have sufficient bandwidth to operate smoothly.
The RT-AC56R also comes equipped with four Gigabit Ethernet LAN ports making it easy to connect Ethernet enabled devices such as game consoles, computers, smart TVs, and more directly to the router. Along with Ethernet connectivity, this router features a single USB 2.0 port and a single USB 3.0 port to connect USB compatible peripherals to the network.
Setting up the RT-AC56R router is simple thanks to the three-step setup process that can be conducted from your tablet, smartphone, or computer. Once the router is plugged in, just open a web browser on your device, enter the ID and password, and begin accessing your network. Once the setup is complete, a network administrator can utilize the ASUSWRT dashboard to manage a variety of settings including Quality of Service (QoS) standards to ensure connected devices have sufficient bandwidth to operate smoothly.
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11d IEEE 802.3 IEEE 802.3u IEEE 802.11i IEEE 802.11e IPv4 IPv6 |
| Data Rate | 802.11n: Up to 300 Mbps 802.11ac: Up to 867 Mbps |
| Antenna | 4 x Internal PCB antenna |
| Transmit / Receive | MIMO Technology 2.4 GHz 2x2 5 GHz 2x2 |
| Memory | 128 MB Flash256 MB RAM |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support |
| Firewall & Access Control | Firewall: SPI intrusion detection, DoS protection Access Control: Parental control, Network service filter, URL filter, Port filter |
| Management | UPnP, DLNA, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, Universal Repeater, System Event Log |
| WAN Connection Type | Internet Connection Type: Automatic IP, Static IP, PPPoE (MPPE supported), PPTP, L2TP WAN bridge support Multicast proxy support Multicast rate setting support |
| Ports | 4 x RJ-45 Gigabit LAN Ports 1 x RJ-45 Gigabit WAN Port |
| Button | WPS Button, Reset Button, Power Switch, Wireless on/off Button |
| LED Indicator | 1 x Power 1 x LAN 1 x WAN 2 x USB 2 x Wi-Fi |
| Power Supply | AC Input: 110~240 V (50~60 Hz) DC Output: 19 V with max. 1.75 A current |
| OS Support | Windows 10 86x64 Windows 8.1 86x64 Windows 8 86x64 Windows 7 86x64 Windows Vista 86x64 Windows 2000 86x64 Windows ME Windows XP 86x64 Windows Server 2003 Windows Server 2008 Mac OS X 10.6 Mac OS X 10.7 Mac OS X 10.8 Linux Kernel (Support Ubuntu only) Linux |
| Dimensions | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
