Product Description

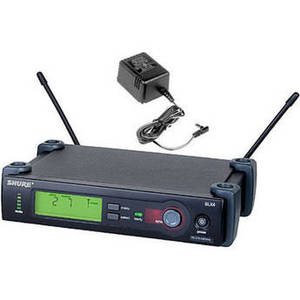

The Shure SLX4L is a UHF wireless microphones receiver, designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more.
| Type of Receiver | UHF Diversity Half-Rack Mountable |
| RF Carrier Frequency Range | J3: 572 - 596 MHz |
| Approx. Working Range | 300' (100m) |
| Overall Frequency Response | 45Hz - 15kHz +/- 2dB |
| Signal-to-Noise Ratio | > 100 dB A-weighted |
| # Of Channels | 960 operating frequencies across a 24MHz |
| Type of Output(s) | XLR connection: 200 ohms 1/4" connection: 1k ohm |
| Headphone Monitoring | No |
| Power Requirements | 12-18 VDC at 150 mA, supplied by external power supply |
| Battery Type/Approx. Life | Not Applicable - external power only |
| Display | Backlit LCD |
| Mounting Options | Short and Long Rack-Mount Hardware Included |
| Antenna Type | Dual 1/4 wave BNC type |
| Dimensions | 1.65 x 7.76 x 5.26" (42 x 197 x 134mm) |
| Weight | 1 lb 13 oz (816 g) |
