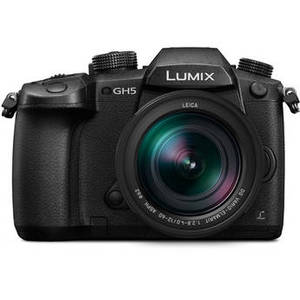

Lumix DC-GH5 Mirrorless Micro Four Thirds Digital Camera with 12-60mm Lens


From Panasonic | Model #: PADCGH51260



See more in


Lumix DC-GH5 Mirrorless Micro Four Thirds Digital Camera with 12-60mm Lens

Product Description

Upgraded and redesigned, the Lumix DC-GH5 Mirrorless Micro Four Thirds Digital Camera with 12-60mm Lens from Panasonic provides an imaging platform for shooters who demand some of the best video and still photography quality they can get in a single compact camera. At the heart of the camera is a 20.3MP Digital Live MOS sensor and a newly developed Venus Engine processor, which both offer dramatically improved processing times over its predecessor. This enables the ability to record 4K video at up to 60 fps, 10-bit 4:2:2 internal recording with select settings, Full HD video at up to 180 fps, 12 fps continuous shooting, and sensitivities up to ISO 25600. Also, the camera features built-in 5-axis sensor stabilization, which can work with certain lenses to activate Dual I.S. 2 for highly effective shake correction that can compensate for up to 5 stops of shutter speed. Other improvements include a speedier and more accurate Advanced DFD autofocus system that can lock on in just 0.05 seconds, as well as 6K PHOTO at 30 fps and 4K PHOTO at up to 60 fps.

Along with all these internal improvements, the body received some significant upgrades as well. For viewing and composing images both the 0.76x OLED viewfinder and 3.2" free-angle touchscreen received resolution bumps to 3.68m dots and 1.62m dots, respectively. This will make shooting more comfortable and more accurate. The magnesium-alloy body is now freezeproof to 14°F in addition to splash and dustproof. For fast image transfer and saving, there are now two UHS-II SD card slots. Additionally, for a completely wireless setup it offers both Wi-Fi and Bluetooth for advanced functionality when paired with a mobile app.

Bundled with the camera body is the Leica DG Vario-Elmart 12-60mm f/2.8-4 ASPH. POWER O.I.S. Lens, a versatile wide-angle to short telephoto zoom with an equivalent focal length of 24-120mm. The lens is an excellent match for the GH5 with sharp, well-corrected optics that create clear images with minimal aberrations. The lens also has a linear motor for fast, near-silent focusing during stills and video as well as the POWER Optical Image Stabilizer to minimize the appearance of camera shake. Additionally, the durable metal construction of the lens is splash, dust, and freezeproof.
Imaging
Lens Mount Micro Four Thirds
Camera Format Micro Four Thirds (2x Crop Factor)
Pixels Actual: 21.77 Megapixel
Effective: 20.3 Megapixel
Max Resolution 20 MP: 5184 x 3888
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Sensor Type / Size MOS, 17.3 x 13 mm
File Formats Still Images: JPEG, RAW
Movies: AVCHD Ver. 2.0, H.264, MOV, MP4
Audio: AAC, Dolby Digital 2ch
Dust Reduction System Yes
Memory Card Type SD
SDHC
SDXC
Image Stabilization Sensor-Shift, 5-Way
AV Recording
Video Recording Yes, NTSC/PAL
Video Format 4096 x 2160p at 23.98/24/25 fps
3840 x 2160p at 25/23.98/24/59.94/29.97/50 fps
3328 x 2496p at 25/23.98/24/59.94/29.97/50 fps
1920 x 1080p at 25/23.98/24/59.94/29.97/50 fps
Aspect Ratio 4:3, 16:9
Audio Recording Built-In Mic: With Video (Stereo)
Optional External Mic: With Video (Stereo + Mono)
Focus Control
Focus Type Autofocus
Focus Mode Continuous-Servo AF (C), Flexible (AFF), Manual Focus (M), Single-servo AF (S)
Autofocus Points Contrast Detection: 225
Viewfinder/Display
Viewfinder Type Electronic
Viewfinder Eye Point 21.00 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 0.76x
Diopter Adjustment -4 to +3 m
Display Screen 3.2" Rear Touchscreen Swivel Touchscreen LCD
Screen Coverage 100%
Exposure Control
ISO Sensitivity Auto, 200-25600 (Extended Mode: 100-25600)
Shutter Type: Electronic & Mechanical
Speed: 60 Second
Type: Electronic & Mechanical
Speed: 30 - 1 Minute in Bulb Mode
 in Movie Mode
Type: Electronic
Speed: 1 Second
Remote Control DMW-RSL1 (Optional)
Metering Method Center-Weighted Average Metering, Multiple, Spot Metering
Exposure Modes Modes: Aperture Priority, Manual, Programmed Auto, Shutter Priority
Metering Range: EV 0.0 - EV 18.0
Compensation: -5 EV to +5 EV (in 1/3 EV Steps)
White Balance Modes Cloudy, White Set 2, Incandescent, Daylight, Flash, Color Temperature, Shade, White Set 3, White Set 1, Auto, White Set 4
Buffer/Continuous Shooting Up to 12 fps at 20.3 MP
Up to 30 fps at 18 MP
Up to 60 fps at 8 MP
Flash
Flash Modes Slow Sync/Red-Eye Reduction
Off
Slow Sync
Forced On/Red-Eye Reduction
Auto/Red-Eye Reduction
Auto
Forced On
Built-in Flash No
Max Sync Speed 1 / 250 Second
Flash Compensation -3 EV to +3 EV (in 1/3 EV steps)
Dedicated Flash System TTL
External Flash Connection Hot Shoe, PC Terminal
Performance
Self Timer 10 Seconds, 2 Seconds
Interval Recording Yes
Connectivity Viera Link, USB 3.0, 1/8" Microphone, 2.5mm Sub-mini (2-Ring), 1/8" Headphone, HDMI A (Full Size)
Wi-Fi Capable Yes
Power
Battery 1 x DMW-BLF19 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1860 mAh
Operating/Storage Temperature Operating
14 to 104°F (-10 to 40°C)
Humidity: 10 - 80%
Physical
Dimensions (W x H x D) 5.5 x 3.9 x 3.4" / 138.5 x 98.1 x 87.4 mm
Weight 1.59 lb / 725 g with battery and memory card
Warranty Length None
Kit Lens
Focal Length 12 - 60mm
Comparable 35mm Focal Length: 24 - 120 mm
Aperture Maximum: f/2.8 - 4
Minimum: f/22
Angle of View 84° - 20°
Minimum Focus Distance 7.87" (20 cm)
Magnification 0.3x
Maximum Reproduction Ratio 1:3.33
Optical Design 14 Elements in 12 Groups
Diaphragm Blades 9, Rounded
Autofocus Yes
Image Stabilization Yes
Filter Thread Front: 62 mm
Dimensions (DxL) Approx. 2.69 x 3.39" (68.4 x 86 mm)
Weight 11.29 oz (320 g)
