Product Description

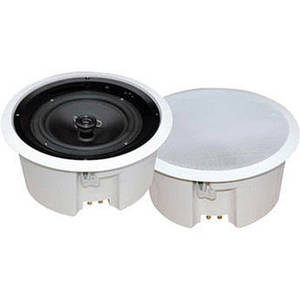

The PDPC8T 8" Enclosed In-Ceiling Speaker System from Pyle-Pro offers an 8" throw woofer, 1" high temperature voice coil, and 1" mylar dome tweeter. Frequency response is rated at 50Hz to 20KHz and peak power is rated at 300W. The unit is designed for placement in a ceiling and a cutout must be made to accommodate the dimensions of each speaker. This model features a vented design to enhance power and deep-bass response. It also includes a 70V transformer tapping at 8 Ohms at 0.25, 0.5, 1, 2.5, 5, 7.5, 15, and 30W.
| System | |
| Speaker Design | Round |
| Power Rating | 300W (peak power) |
| Impedance | 8 Ohms |
| Frequency Response | 50Hz to 20KHz |
| Sensitivity | Not specified by manufacturer |
| Crossover | Not specified by manufacturer |
| Enclosure | Not specified by manufacturer |
| Shielded | Not specified by manufacturer |
| Drivers | |
| Tweeter | 1" mylar dome tweeter |
| Midrange | None |
| Woofer | 8" throw woofer |
| General | |
| Connector Type | Not specified by manufacturer |
| Configuration | Not specified by manufacturer |
| Construction | Not specified by manufacturer |
| Dimensions | Not specified by manufacturer |
| Cut-Out Size | Diameter: 11.4" Depth: 5.72" |
| Mounting Depth | 5.72" |
| Weight | Not specified by manufacturer |
| Color | White |
