14x40 TS1440 Techno-Stabi Image Stabilized Binocular


From Fujinon | Model #: FUTS1440



See more in

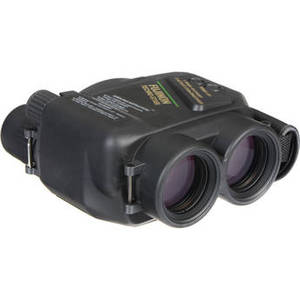

14x40 TS1440 Techno-Stabi Image Stabilized Binocular

Product Description

The Fujinon Techno-Stabi TS 14x40 Binocular provides the kind of stabilization needed for its high 14x magnification, and is a joy to use handheld. In easy conditions with 7 or 8x binoculars, it is relatively simple to get large, steady images up close and personal. But as magnification increases, this becomes a more difficult task. Eventually the smaller field of view and more pronounced shake of a large optic can render big binoculars a very frustrating affair.

But the Techno-Stabi's whopping 5° of stabilization in every direction makes it actually useful in such situations as tracking a moving subject while on a moving platform yourself. It is also great for observing from airplanes, helicopters, or boats, and as a completely waterproofed unit it can be used effectively anywhere.

Beyond its stabilizing capacity, the Techno-Stabi 14x40 TS has Fujinon's EBC multi-coatings upon every optical surface, and also has phase-coated BAK4 roof prisms for great brightness and contrast. The Techno-Stabi accepts DC and AC power sources in addition to the 4 "AA" batteries normally used.

Prism Type Roof
Magnification 14x
Objective Lens Diameter 40 mm
Angle of View 4.0° (actual)
Field of View 210.0' @ 1000 yd / 70.0 m @ 1000 m
Minimum Focus Distance 16.4' / 5 m
Exit Pupil Diameter 2.9 mm
Eye Relief 13 mm
Interpupillary Adjustment 60.0 - 70.0 mm / 2.4 - 2.8"
Dioptric Correction ±4
Stabilization Freedom ±5°
Tripod Mount None
Dimensions 7.3 x 3.4 x 5.8" / 18.5 x 8.6 x 14.7 cm
Weight 2.71 lb / 1.23 kg
