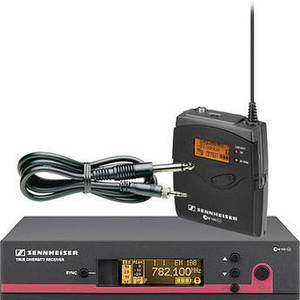

ew 172 G3 Wireless Instrument System with Ci 1 Guitar Cable - G (566-608 MHz)
Product Description
The Sennheiser ew 172 G3 Wireless Instrument System with Ci 1 Guitar Cable is designed to provide dependable wireless performance for guitars and instruments for rehearsals, recording, stage and other applications. The system includes a UHF diversity receiver, bodypack transmitter and Ci 1 instrument cable with 1/4" phone connector. The transmitter and receiver synchronize channel and frequency at the touch of a button. The bodypack allows you to charge the (optional) rechargeable pack while it remains in the transmitter. A back-lit display allows for easy operation under dimly-lit conditions and it's user friendly menu makes operation quick and easy.
In addition, the ew 172 G3 also includes some handy guitar specific features. The system's cable emulator feature allows you adjust virtual cable lengths to get sound response similar to a cable. Another practical feature for guitarists is the built-in guitar tuner, right on the display. A built in 5 band EQ allows you to fine tune your sound even further. Bass players in particular will be pleased with the enhanced AF frequency response: it starts at 25 Hz, which will especially please players with 5-string bass guitars.
| System | |
| Type of System | True Diversity UHF Wireless Instrument System |
| RF Carrier Frequency Range | G (566-608 MHz) |
| Approx. Working Range | Not Specified By Manufacturer |
| Overall Frequency Response | Line: 25 Hz - 18 kHz Mic: 80 Hz - 18 kHz |
| Signal-to-Noise Ratio | > / - 110 dBA |
| # Of Channels | 1680 20 Channel Banks, 1 Fixed Bank, 12 Factory Preset Channels Each |
| # Of Simultaneous Systems | Not Specified By Manufacturer |
| Receiver | |
| Type of Receiver | EM 100 Half-Rack Mountable True Diversity UHF |
| Type of Outputs | Balanced XLR Unbalanced 1/4" Phone |
| Headphone Monitoring | 1/4" Phone (Front Panel) |
| Power Requirements | 12 VDC |
| Battery Type/Approx. Life | Not Applicable |
| Display | Back-lit LCD Display |
| Mounting Options | Optional GA 3 Rackmount Kit (Not Included) |
| Antenna Type | BNC Type x2 |
| Dimensions | 7.48 x 8.35 x 1.69" (190 x 212 x 43 mm) |
| Weight | 1.99 lb (900 g) |
| Transmitter | |
| Type of Transmitter | SK 100 Bodypack Transmitter |
| Type of Input Connector | Locking 1/8" (3.5mm) Mini |
| Type of Microphone | Ci 1 Instrument Cable |
| Polar Pattern | Not Applicable |
| Interchangeable Mic Heads | Not Applicable |
| Battery Type/Approx. Life | AA 1.5 V Batteries x2 (8 Hours Typ.) |
| Mute Switch | Programmable Mute Function |
| Level Control | Yes |
| Antenna Type | 1/4 Wave |
| Display | Back-Lit LCD |
| Dimensions (WxDxH) | 3.23 x 2.92 x 0.94" (82 x 64 x 25 mm) |
| Weight | 160 g (5.64 oz) |
