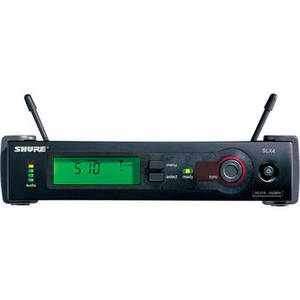

SLX4 Diversity UHF Wireless Microphone Receiver (J3: 572 to 596 MHz)
Product Description
The Shure SLX4 is a UHF wireless microphones receiver designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group, and Channel information, as well as transmitter battery status, audio level, and more.
| Type of Receiver | UHF Diversity Half-Rack Mountable |
| RF Carrier Frequency Range | J3: 572 to 596 MHz |
| Approx. Working Range | 300' (100 m) |
| Overall Frequency Response | 45 Hz to 15 kHz +/-2 dB |
| Sensitivity | -105 dBm for 12 dB SINAD, typical |
| Dynamic Range | > 100 dB A-weighted |
| # Of Channels | 960 operating frequencies across a 24 MHz bandwidth |
| Configuration | Impedance balanced |
| Type of Output(s) | XLR connection: 200 Ohms 1/4" connection: 1 kOhm |
| Image Rejection | > 70 dB, typical |
| Headphone Monitoring | No |
| Power Requirements | 12-18 VDC at 150 mA, supplied by external power supply |
| Display | Backlit LCD |
| Mounting Options | Short and long rackmount hardware included |
| Antenna Type | Dual 1/4 wave BNC type |
| Dimensions | 1.65 x 7.76 x 5.26" (42 x 197 x 134 mm) |
| Weight | 1.8 lb (816 g) |
